YN27C Gasoline Rock Drill Rock Drilling Tools with Shank Size Hex 22*108
Product Description
YN27C gasoline rock drill or petrol driven rock drill machine is powered by gasoline engine, without using air compressor, a very efficient machine with the characters that the structure is very compact, less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping
Key Components
- Engine: Single cylinder, two-stroke petrol engine with air cooling, reflux air conversion, no contact ignition, and non-floating carburetor. Comprised of control parts, starter components, oil tank, flywheel, crankshaft, connecting rod, crankshaft case, magneto, piston, and cylinder components.
- Air Compressor: Features separate engine piston and hammer piston mounted in upper and lower cylinder positions moving synchronously. Forms compression chamber with hammer piston and larger cylinder bore, including air inlet/outlet valves and ventilator valves.
Technical Specifications
| Model | YN27C |
| Engine Displacement | 185 cm³ |
| Engine Rotation Speed | 2450r/min |
| Idle Speed | 200 r/min |
| Drill Rod Size | 22×108mm |
| Hole Diameter Range | 26-46mm |
| Fuel Tank Capacity | 1.14L |
| Drilling Speed | ≥250mm/min |
| Oil Consumption Rate | 0.12L/m |
| Fuel Mixture Ratio | 9:1 (Gasoline:Lubricating Oil) |
| Spark Plug Clearance | 0.5-0.7mm |
| Impact Energy | ≥20 J |
| Weight | 27kg |
| Dimensions | 746*315*229mm |
Key Advantages
Portability: No need of external power supply or compressed air, suitable for field operations and places with insufficient electricity.
– High efficiency: The internal combustion engine provides strong power, suitable for drilling and hole drilling operations.
– Multi-function: Work with different types of drill bits and chisels to adapt to various work needs.
– Easy operation: Easy to start, stop and operate, ergonomic design, reduce operator fatigue.

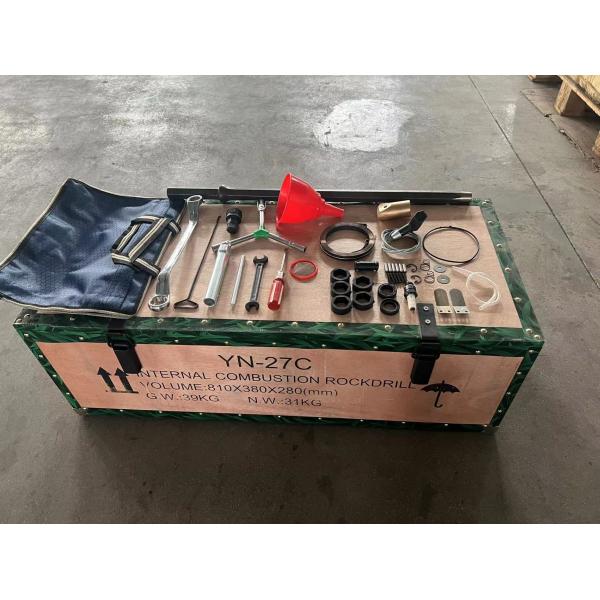

Product Images
